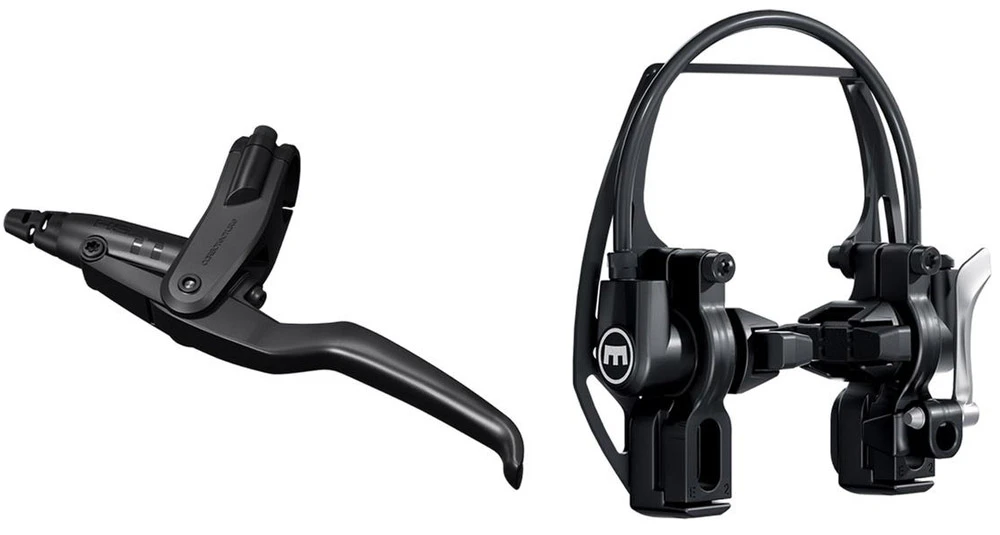

MAGURA HS11 EVO2 Carbotecture® Brake

The HS11 from Magura is the youngest member of the HS family. With its enhanced master piston and an ergonomic 3-finger lever blade design, the HS11 is an uncomplicated everyday companion.

HS technology entry class: The Magura HS11 Rim Brake

With a revised master piston for high everyday braking force. Very comfortable thanks to the ergonomic lever design. The closed hydraulic system and the HS technology tried and tested over decades make the little sister of the HS22 an absolutely care-free brake. MAGURA Royal Blood mineral oil does away with the need for changing the brake fluid and puts mechanical wear and tear in the past. Huge braking power for everyday use and city biking and comfort in use thanks to ergonomic levers make the HS11 the perfect companion for any situation.

---

Features

• Compatible with all Shimano STI, Sram trigger and Sram and Rohloff twist grip shifters
• 3-finger lever
• left/right hand use
• With EVO2 culivation

Product features

• Use: Trekking/City
• Technical features: Full hydraulic
• Hydraulic system: Closed, without expansion chamber
• Deceleration (m/s²) according to DIN 79100: 4.2
• Brake medium: MAGURA Royal Blood mineral oil
• Material Lever blade: Carbotecture®
• Material Master: Carbotecture®
• Material Caliper: Aluminum
• Hydraulic: Yes
• EBT: Yes
• BAT/TPA: Yes – tool T25
• Brake Booster: No
• Reach Adjust: No
• Flip-Flop: Yes
• Shift Mix: Yes
• Remote Mix: Yes
• Lever blade: 3-Finger
• Tubing: MAGURA Tube easily shortable
• E-Bike Switch: No
• Rim width: 18mm – 28mm
• Tire width: max 2.5″
• Hose length: 2000mm (shortable)
• Mounting: Canti EVO2

Color

• black

Weight

• 425g

---

Scope of delivery

• 1 Magura HS11 EVO2 Carbotecture® Brake
• 1 pair Standard Rim Brake Pads (black)
• 1 Mounting Hardware (EVO2 – 1 x adapter screw M5x33mm, 2 x sockel screw M6x17.5mm, 3 x quick release screw M6x19mm)
• 1 Mounting plate
• Brake is ready for installation, completely assembled and bleeded!
